Lifting Capacity: 50/70/100 kg
New rubber rings can be ordered as spare parts by calling +45 97 10 10 74 or emailing sales@al-lift.com.

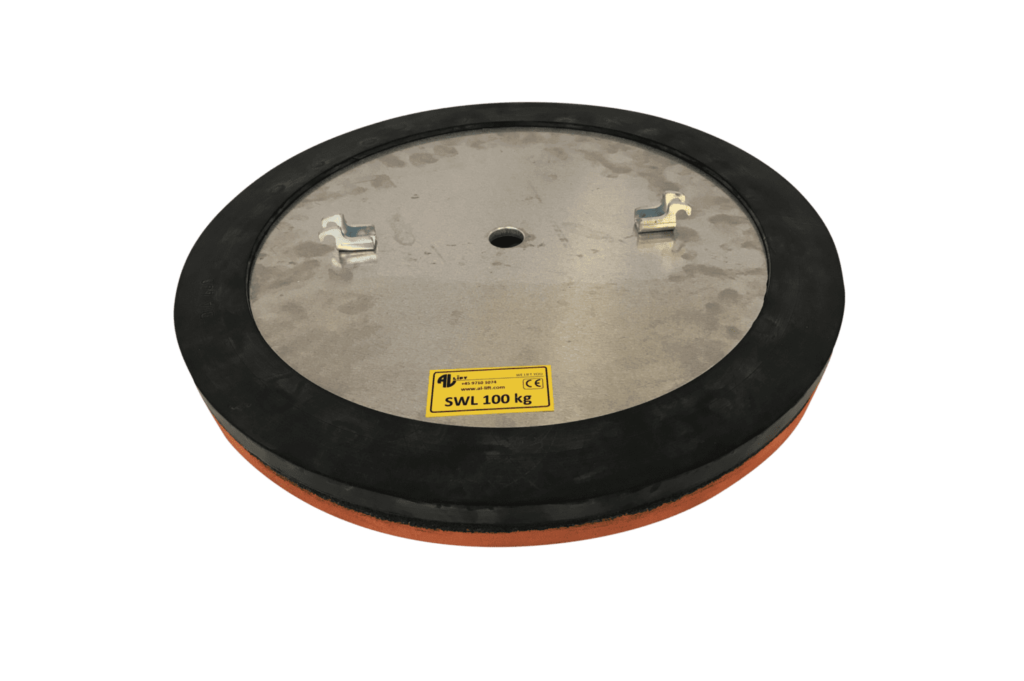

The complete suction cup consists of an aluminum suction plate, fitted with a black rubber ring that is vulcanized with 20×20 mm or 40×20 mm orange sponge rubber.
Can be used with many of our popular tile lifters.
Suction Cup Size (mm) | Sponge Rubber | SWL (kg) | Item No. (Complete Suction Cup) | Item No. (Loose Ring Seal) | Compatible with AL-SPUTNIK | Compatible with AL-MANOLAY | Compatible with AL-MOBIVAC |
---|---|---|---|---|---|---|---|
ø300 | 20×20 mm | 50 kg | 320.104 | 300.003 | X | X | X |
ø350 | 20×20 mm | 75 kg | 320.100 | 300.005 | X | X | X |
ø440 | 40×20 mm | 100 kg | 320.101 | 300.006 | X | X | X |
