The suction cup can be used directly on the following machines:
AL-BUTLER 200
AL-ATOMIC 500
AL-DYNAMIC 1000
AL-TYPHOON 1000
and on AL-DYNAMIC 8000 with the use of an adapter.

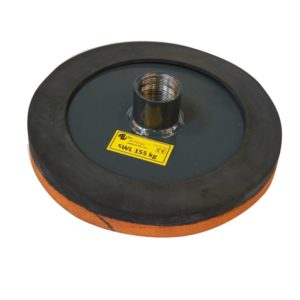

This suction cup consists of a suction plate fitted with a black rubber ring.
| Suction Cup Size (mm) | SWL (kg) | Item No. (Complete Suction Cup) | Item No. (Loose Ring Seal) |
|---|---|---|---|
| ø200 | 70 kg | 320.002 | 300.040 |
| ø300 | 155 kg | 320.003 | 300.003 |
| ø350 | 220 kg | 320.005 | 300.005 |
| ø440 | 370 kg | 320.006 | 300.006 |
