Lifting Capacity for the Model Shown: 6000 kg
Available in various sizes tailored to client needs, accommodating different sheet dimensions, lifting capacities, etc.

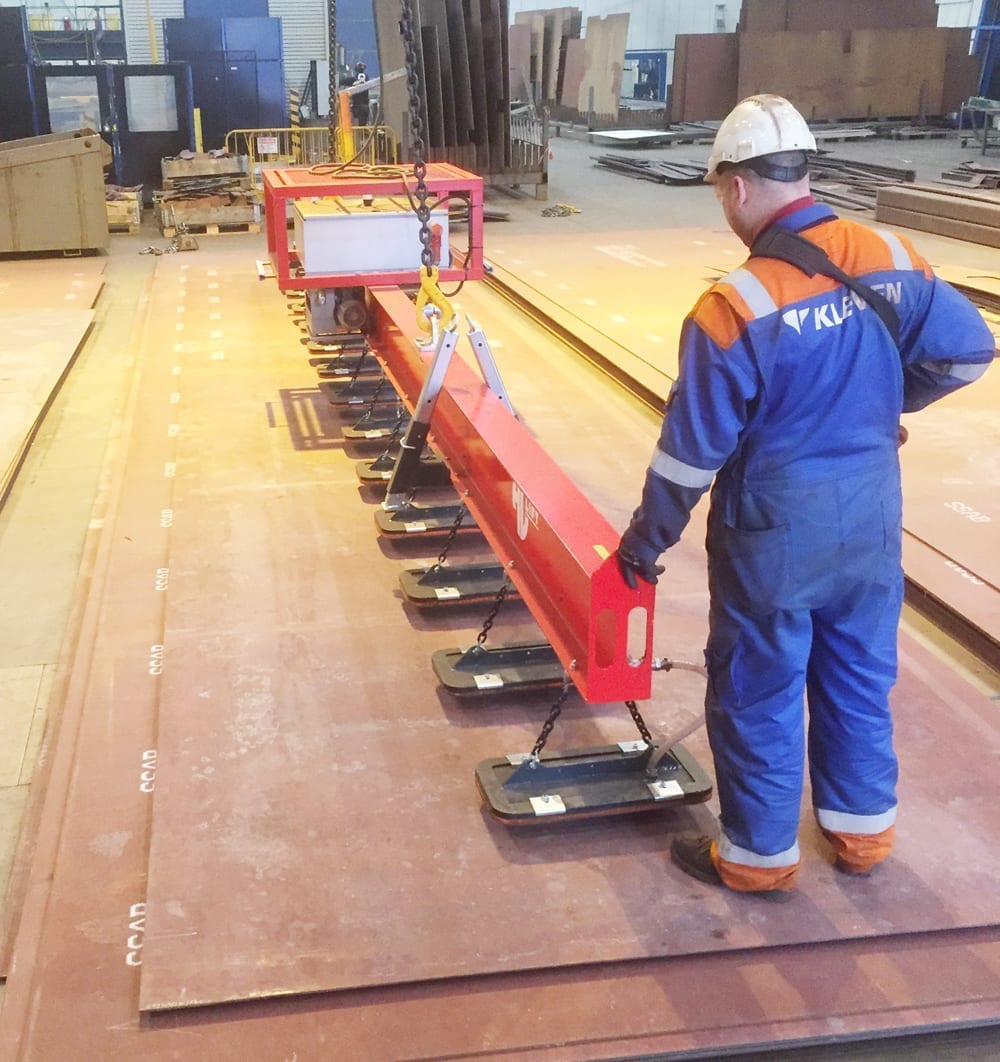

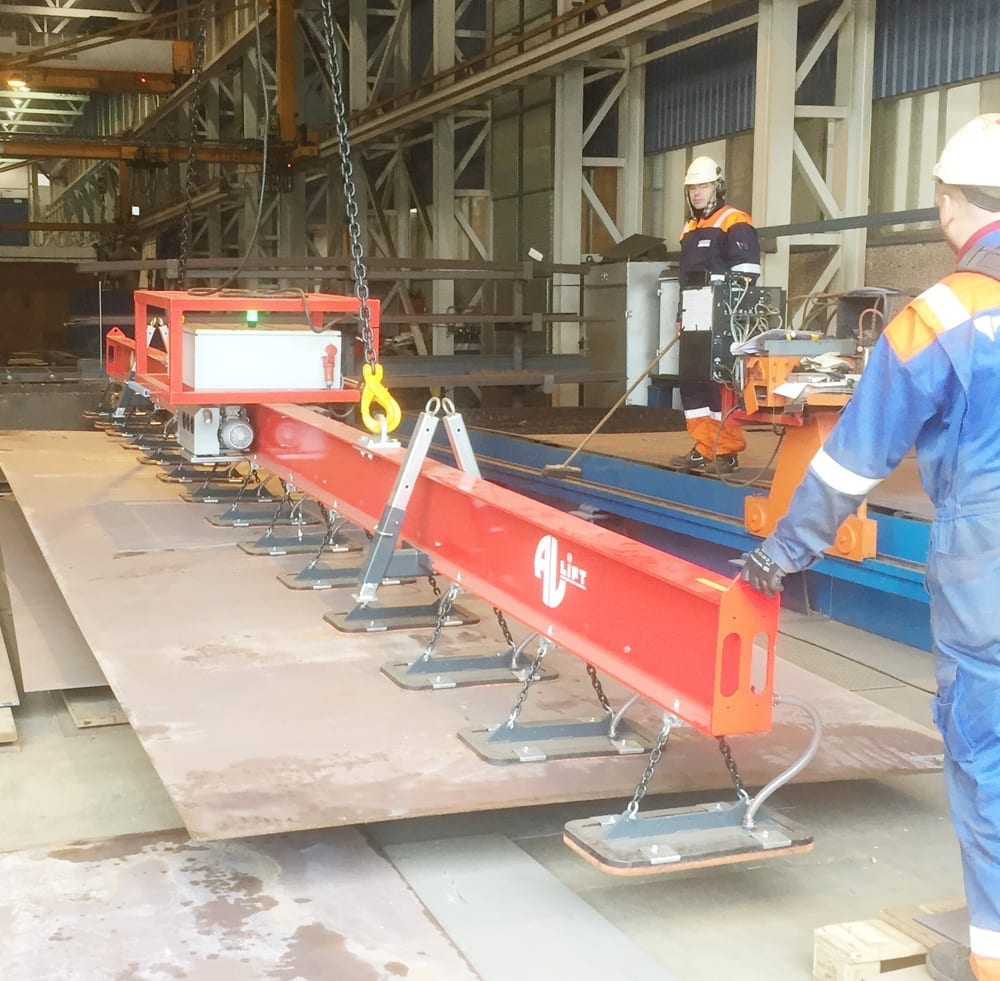

The MEGAVAC 6T features a 10-meter main boom with 14 loosely suspended suction cups, ensuring proper suction on steel plates every time.
The suction cups on the MEGAVAC measure 600×300 mm and are distributed along the 10-meter main boom. All suction cups are equipped with shut-off valves, allowing the handling of both long and short steel plates.
The vacuum pump for the vacuum lifter is powered by 3x400V, 50Hz, with a safety system that includes both an audible alarm and a visual (red flashing light) indicator for low vacuum pressure. Suction and release are controlled via a radio remote control, allowing the operator to manage the lift from a distance.
The MEGAVAC can be configured as per customer requirements in various sizes, depending on sheet dimensions, lifting capacity, etc.
The model shown has a lifting capacity of 6000 kg with a lifting height of up to 2000 mm.
Easy to use:
- Place the suction cups on the steel plate.
- Start the vacuum pump (requires 3x400V) with the start button.
- Activate the vacuum.
- Lift with the electric hoist and move the steel plate.
- Place the steel plate at the destination.
- Deactivate the vacuum.
For larger lifting capacities, we recommend the MEGAVAC 24 TONS.
